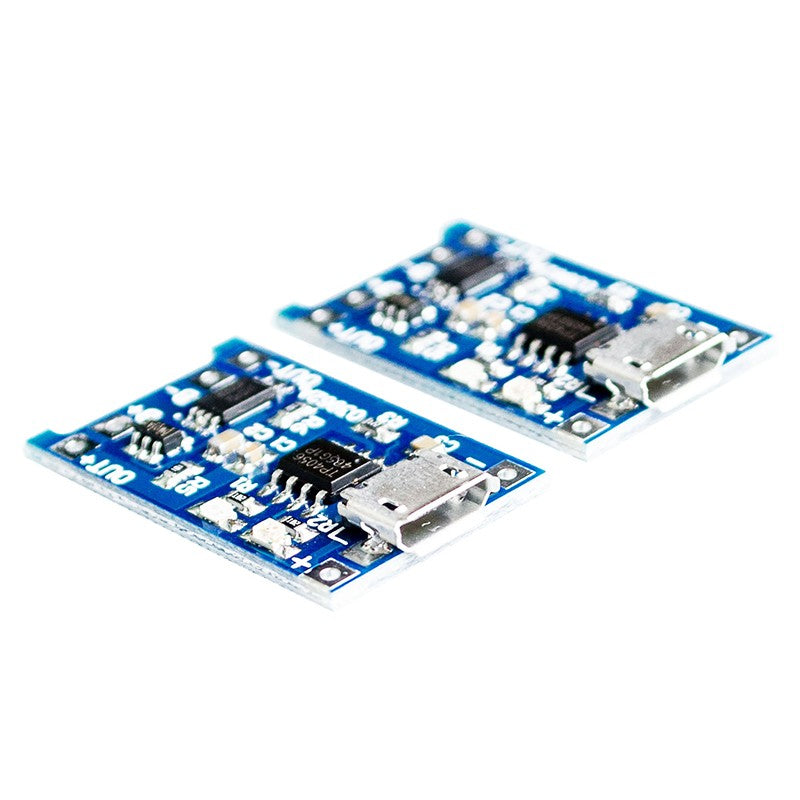

Lithium Battery Charging

Product Description
Maximum quantity available reached.

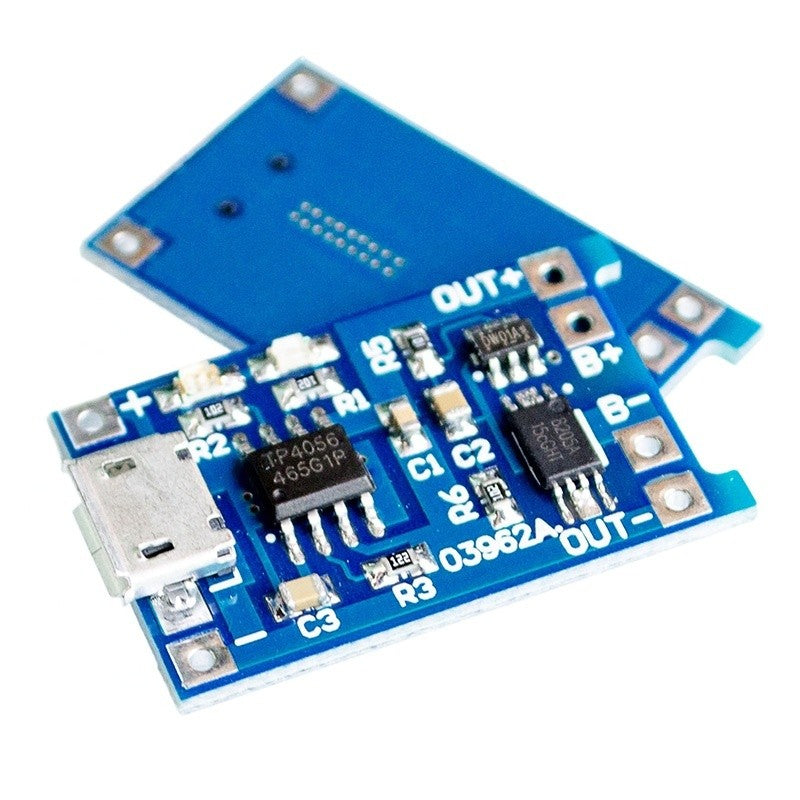

Input with MICRO USB female can directly use mobile charger for input to the lithium battery

And still retain the input voltage wiring solder joints can be very convenient to DIY

The input voltage. 5 v

Charge cut-off voltage. 4.2 V - 1%

Maximum charging current. 1000 ma

The battery discharge protection voltage. 2.5 V

Battery. over-current protection current 3 a

The board size. 2.6 x 1.7 CM

Method of use.

Note. access to the battery for the first time may be OUT between and O

UT - no voltage output then renew your access to the 5 v voltage electric

ity can activate the protection circuit battery from B B - short drive

connected again to activate the protection circuit also need to renew you

r electricity. Pay attention to when using the phone charger to do input t

he charger must be able to output 1 a or above or may not charge properly

MICRO USB female seat and the - next to the bonding pad for the power in

put end access to the 5 v voltage. Li-ion battery anode B B - connect

the cathode of lithium batteries. OUT and OUT - load such as mobile bo

oster look negative or other load.

To B B - then good battery insert USB mother mobile phone charger to r

ed light for recharging is full of green light.

package. 1 pcs product in a pack
